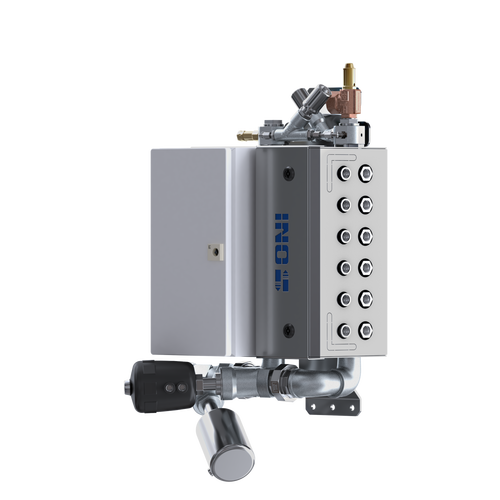

The Rhytemper® FlowWatch Professional is a modular brass manifold with integrated electronic flow and temperature monitoring for multiple individual channels. Precision-milled brass blocks provide maximum flow cross-sections while minimizing space requirements. The system is robust against pressure surges and delivers high measurement accuracy. The manifold block is designed for die-casting applications, featuring a protective enclosure and a separate electronics box.
Rhytemper® FlowWatch
Professional
Digital Flow and Temperature Monitoring for HPDC and LPDC Applications
Customer installation example – tool-proximate setup enables precise heat dissipation
Individual number of temperature circuits through modular design with robust brass blocks
Key Features Rhytemper® FlowWatch
Compact manifold system with tool-proximate installation, consisting of modularly linked brass blocks
Factory-equipped with Profi visualization unit featuring 15″ TN or 10.4″ TFT touchscreen, graphical process data display, tool data storage, USB interface, OPC, and Ethernet for data transfer
System overview display including temperature control units, pre-filters, chiller, and all active individual circuits on a single page
Optional remote maintenance via UMTS router without integration into customer network
Integration of the tool cooling plan with assignment and labeling of individual circuits per tool dataset
Recording and comparison of temperature spots and ranges at the cavity using a thermography camera
Temperature and flow monitoring with leak detection for all tool channels
Flow measurement via turbine, vortex, or ultrasonic system
Media supply via temperature control unit, external heat source, or central cooling network with switching function
Individual flow regulation per circuit via manual valve
Expandable to Rhytemper® multi-circuit temperature control systems FlexControl or HotPulse
Technical Details
| Circuit Control | Manual balancing valve | Manual balancing valve |
| Measurement Principle | Turbine | Ultrasonic |
| Measuring Flow Rate | 0,3 – 40 l/min | 0,3 – 75 l/min |
| Maximum Medium Temperature | 85°C // 160°C | 125°C |
| Medium Measuring | Water | Water |
| Main Media Connection | 1 ½ inch internal thread | 1 ½ inch internal thread |
| Consumer Circuit Connection | ½ inch internal thread | ½ inch internal thread |
| Rated Pressure | PN10 // PN16 | PN10 |
Accessories
ONI RHYTEMPER Temperatur Control Units
The high-performance temperature control units from ONI Temperiertechnik RHYTEMPER® GmbH are ideal for use as stand-alone systems or, even more efficiently, in combination with an ONI temperature control installation.
ONI Rhytemper® Mold Drainage System
ONI temperature control systems come with perfectly matched accessories. Blow-out units are used for the effective emptying of cooling channels in injection molds before a mold change. This process reliably protects the cooling channels from corrosion during storage.
Filter unit
Perfectly matched accessories are available for ONI tempering systems. Filter units help prevent tool contamination and system malfunctions caused by dirt or metallic deposits from the cooling water network, ensuring reliable and sustainable operation.
