ONI RHYTEMPER® RHY-HighT120

Compact Temperature Control Unit up to 120 °C for Injection Moulding and Die Casting

The RHY-HighT120 is a compact and powerful temperature control unit for media temperatures up to 120 °C and is suitable for mould and die temperature control in injection moulding and die casting. Direct cooling, a powerful multistage centrifugal pump and robust design ensure reliable temperature control with a small footprint.

Thanks to its compact dimensions, the RHY-HighT120 is ideally suited for use as an independent stand-alone unit. Defined interfaces also enable integration into RHYTEMPER multi-circuit temperature control systems – for flexible and powerful media supply.

ONI RHYTEMPER Temperature Control Units

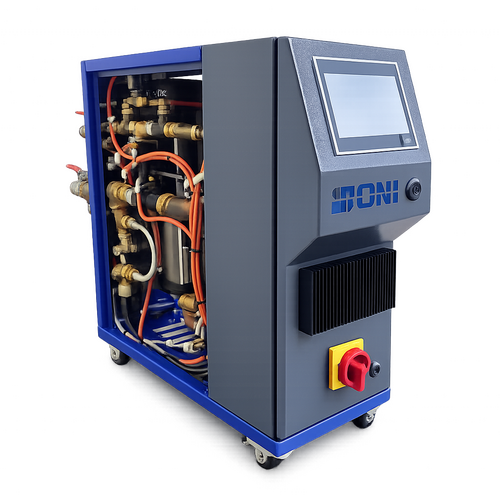

ONI RHYTEMPER RHY-HighT120

Advantages

Media temperatures up to 120 °C for demanding temperature control applications.
Direct cooling for effective heat removal.
High flow rates with a multistage centrifugal pump.
Compact dimensions for a small footprint.
Flexible application for injection moulding and die casting.
Ideal as a stand-alone unit for independent operation.
Compatible with RHYTEMPER systems via defined interfaces.

Standard Equipment

  • User-friendly PLC control with 7-inch touch display
  • Digital RS485 interface included in the basic unit
  • Robust, powder-coated enclosure for industrial applications
  • RAL 7016 / 5002, special colours on request
  • Corrosion-resistant components made of stainless steel / brass
  • Optimised accessibility through single-sided pipe routing
  • Heating elements made of highly corrosion-resistant alloy
  • Filters at the temperature control unit inlet and in the consumer return line
  • 5 m connection cable with CEE plug
  • Multistage centrifugal pumps with energy-efficient motors
  • Control cabinet with IP54 protection
  • Fully automatic air vent
Download Brochure

Technical Data RHY-HighT120

RHY-HighT120 S
Max. Media Temperature 120 °C
Heating Capacity 6, 8 kW
Max. Cooling Capacity, Direct/Indirect (at ΔT = 70 K) 80 kW
Max. Pump Pressure 6.3 bar
Max. Flow Rate 125 l/min
Consumer Circuit Connection¹ 1 inch
Cooling Water Circuit Connection¹ ½ inch
¹ All inch dimensions refer to G threads according to ISO 228-1 (Whitworth pipe thread, cylindrical, parallel, non-self-sealing).

Options RHY-HighT120

RHY-HighT120 S
Frequency Control of the Pump Motor ✓
Shut-Off Valves ✓
Flow Measurement ✓
Heat Exchanger for Indirect Cooling -
Increased Cooling Capacity -
Switching Between Direct/Indirect Cooling -
Water Exchange Function -
Cold Water Outlet Temperature Measurement -
Available Interfaces (4–20 mA, PROFINET, PROFIBUS, OPC UA with EUROMAP 82.1, TTY) ✓
Enclosure in Special Colour ✓
Special Voltages for Worldwide Use ✓
Stainless Steel Enclosure ✓
All Media-Contact Components in Stainless Steel ✓

Dimensions

RHY-HighT120 S
Length 840 mm
Width 260 mm
Height 675 mm
Empty Weight 100–150 kg
